$10,990.00

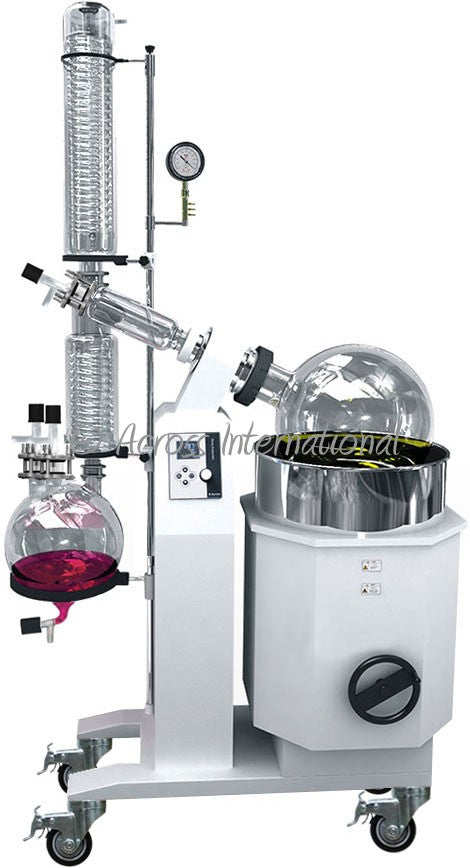

50L rotary evaporator with manual and motorized lift.
The new Ai SolventVap 13-gallon/50L/1.8 cu ft (evaporating flask capacity) series rotary evaporators come with vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

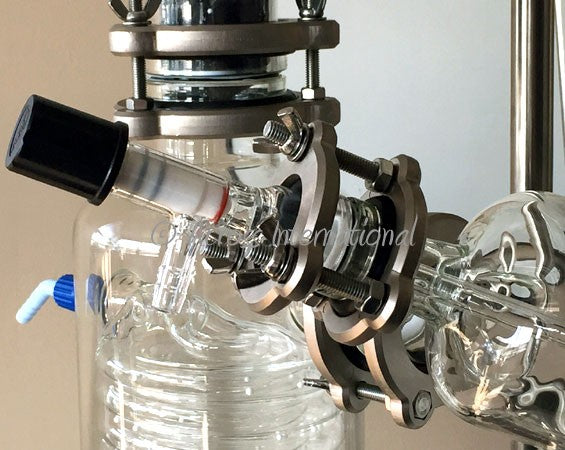

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.
Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.
Standard Glassware Set includes 13.2 gallon (50 liters) round-bottomed evaporating flask, 5.28 gallon (20 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.
Features
Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
Downward-condensing vacuum connection design ensures safe vacuum operation.
Motorized water bath lifting for precise control.
Easy, straight-forward visual operation with digital speed and temperature display.
PID temperature controller ensures accurate temperature control is maintained.
One year warranty and lifetime US-based parts and service support.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
Specifications
Electrical requirements
220V 50/60Hz single phase, 29A, 6300 watts (rotation speed: 250 watts)
Evaporating flask
Capacity: 13.2 gallon (50 liters or 1.8 cu ft)
Maximum load: Not to exceed 60% of the flask's capacity
Sealing flange: 4.9" diameter
Rotation speed: 10 to 110 rpm
Evaporating speed: 2.4 gallon/hour (water), 5 gallon/hour (alcohol)

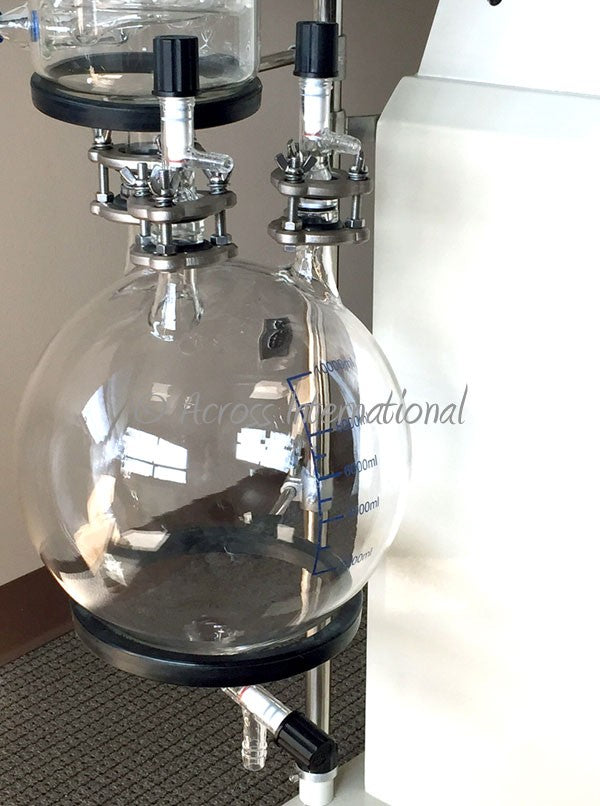

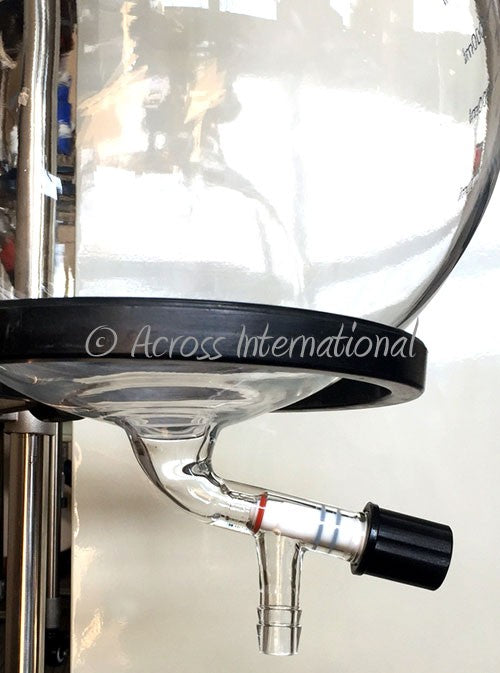

Receiving flask
5.28 gallon (20 liters or 0.7 cu ft)
Condenser Glassware: Main + auxiliary triple-circulating cold traps, vertical
Chilling fluid connection: 3/8" hose barb x 4 (2 on main + 2 on auxiliary)
Working environment
5 to 95°F
Water bath
Temperature range: ambient to 99°C (210°F)
Temperature controller: digital
Dimensions: 21.7" diameter x 12.6" depth
Material: stainless steel
Media: water
Number of heaters: three
Drain port: one
Lifting: Motorized + manual
Maximum lifting distance: 9 inches
Vacuum level < 3 torrs
Vacuum sealing PTFE + Vinton gaskets
Vacuum connection 3/8" hose barb x 1
Safety Dry-run, over-temp shut-off, built-in circuit breakers
Unit dimensions (WxDxH) 52 x 30 x 92" (fully assembled)
Shipping dimensions (WxDxH)
46 x 28 x 58" (Evaporator), 41 x 34 x 32" (glassware)
Shipping weight 525 Lbs
