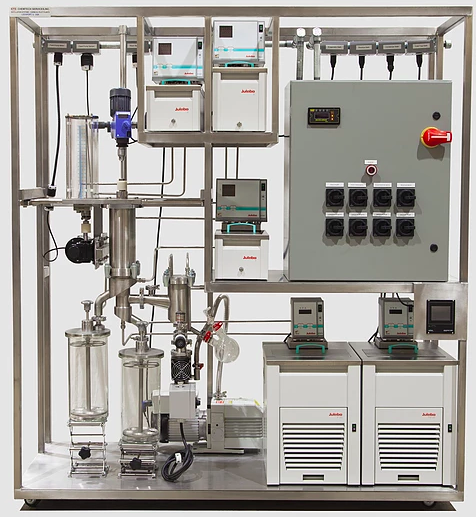

CTS KDT-6

  • Single Stage and Two Stage options available
  • Prices do not include any additional taxes, fees, training, installation or additional system options
  • Current Lead Time: 14 weeks



Single Stage:

SUPPORT FRAME SYSTEM

  • 304SS Bench Frame w/castors

  • Dimmensions: ​75"w 76"t 28"d



FEED SYSTEM

  • 2 Liter Hot Oil Heated Feed Tank

  • Feed Metering with gear pump

  • Hot Oil Traced Support Plate

EVAPORATOR

  • 316 Stainless Steel

  • 0.060 Sq. Meter Surface Area

  • Estimated Process Rate 4.00 liter/hour*



CIRCULATORS

  • Evaporator Circulator 3kW; 25-300°C

  • Condenser Circulator 2KW Heat/680W Cool -40-200°C

  • Cold Trap Circulator 2kW Heat, 680W Cool -40-200°C

  • Residue Circulator 1 kW; 0-250°C

  • Feed Circulator 1kW;  0-250°C

SAMPLE COLLECTION

  • 6-Position Carousel





VACUUM SYSTEM

  • Enclosed w/brine Cold Trap insert

  • Backing RVP 8 m3/hour
    Oil Diffusion 50 l/sec

​​

MISCELLANEOUS

  • Optional Electrical Control Cabinet

  • Electrical Load: 230V 3 ph 60 amp









Two Stage:

SUPPORT FRAME SYSTEM

  • 304SS Bench Frame w/castors

  • Dimmensions: ​129"w 76"t 28"d



FEED SYSTEM

  • 2 Liter Hot Oil Heated Feed Tank

  • Feed Metering with gear pump

  • Hot Oil Traced Support Plate

EVAPORATOR

  • 316 Stainless Steel

  • 0.060 Sq. Meter Surface Area

  • Estimated Process Rate 4.00 liter/hour*



CIRCULATORS

  • Evaporator Circulator 3kW; 25-300°C

  • Condenser Circulator 2KW Heat/680W Cool -40-200°C

  • Cold Trap Circulator 2kW Heat, 680W Cool -40-200°C

  • Residue Circulator 1 kW; 0-250°C

  • Feed Circulator 1kW;  0-250°C

    SAMPLE COLLECTION

    • 6-Position Carousel





    VACUUM SYSTEM

    • Enclosed w/brine Cold Trap insert

    • Backing RVP 8 m3/hour
      Oil Diffusion 50 l/sec

    ​​

    MISCELLANEOUS

    • Optional Electrical Control Cabinet

    • Electrical Load: 230V 3 ph 100 amp



Stage Option
